Aqua-Pure™ AP430SS Scale Inhibitor System - (AP43011)

Why Choose the AP430SS?
Scale build-up and corrosion in hot-water systems can be costly—reducing heater efficiency, shortening equipment lifespan, and increasing energy bills. With its high-flow capacity, durable construction, and easy maintenance, the AP430SS offers a smart, cost-effective way to manage scale and protect your plumbing investment. By targeting just the portion of water that contacts critical components and injecting the polyphosphate inhibitor in small, controlled doses, the system offers seamless protection without significant pressure drop or filter replacement complexity.

The 3M Aqua-Pure AP430SS Scale Inhibition System is a premium whole-house solution designed to reduce mineral scale and corrosion in hot-water systems, plumbing, and appliances. By controlling the effects of calcium and magnesium hardness, this system helps extend the life of your water-using equipment, maintain efficiency, and minimize maintenance.

Key Features & Benefits

• Protects hot-water appliances (standard tanks, tankless heaters), dishwashers, clothes washers and plumbing fixtures by inhibiting scale build-up.

• Utilizes polyphosphates (or Siliphos) to bind hardness minerals and prevent precipitation and deposition on metallic surfaces—helping reduce corrosion and maintain system efficiency.

• High-flow design: supports up to 10 gallons per minute through its ¾″ NPT inlet/outlet connections—suitable for residential or light commercial point-of-entry installations.

• Durable construction: 316 / 304 stainless steel head for “sweat-in” installation and corrosion resistance under demanding conditions.

• Convenient maintenance: quick-change cartridge design lets you replace the media easily (typically every 3-6 months depending on water quality) without major system disruption.

• Complies with drinking-water material standards (FDA CFR-21 compliant materials) and is suitable for use in systems supplying cooking or potable water.

Technical Specifications

• Model: AP430SS.

• Inlet/Outlet Size: ¾″ NPT female.

• Rated Flow Rate: Up to 10 gpm (≈ 37.9 L/min).

• Operating Pressure: 25 – 125 psi (≈ 172-862 kPa).

• Operating Temperature: 40 °F – 100 °F (≈ 4.4 °C – 37.8 °C).

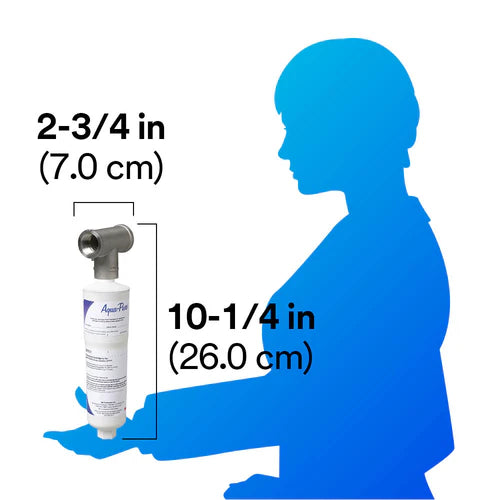

• Dimensions: Approx 10-1/4″ height × 2-3/4″ diameter.

• Weight: Approx 2.3 lb.

• Replacement Cartridge: AP431 (or equivalent).

• Recommended Cartridge Life: 3-6 months (depending on water conditions).

Ideal Applications

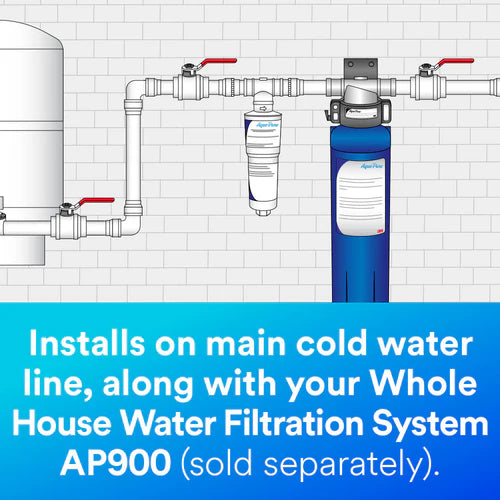

• Installed on the cold-water supply line to the water heater or at the main entry for homes or light-commercial buildings.

• Buildings where hard water (high calcium/magnesium) is causing scale build-up, reduced efficiency, shorter appliance life or increased maintenance.

• Systems where maintaining flow rate and minimizing pressure drop are important (given the 10 gpm rating with ¾″ connections).

Installation & Maintenance Notes

• Must be installed by a qualified installer: sweat-in or threaded connection possible with the stainless steel head.

• It’s recommended to install the unit upstream of the hot-water heater so that treated water flows into the heater and downstream plumbing.

• Replace the cartridge (AP431) at the recommended interval—if you notice a drop in pressure, excessive scale formation or a change in water performance, consider earlier replacement.

• While the system treats hardness by scale-inhibition (not by softening with ion-exchange), it does not remove hardness minerals completely. For full softening you would still need a dedicated water-softening system.

• For best performance, ensure upstream sediment or large particle removal is in place; while the AP430SS supports full flow, intakes with heavy sediment may reduce cartridge life.
