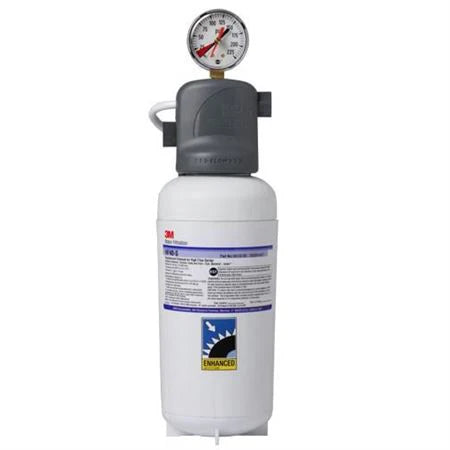

3M™ ICE140-S High-Flow Ice Machine Filtration System

3M ICE140-S High-Flow Ice Machine Filtration System – 0.2 µm Rating, 25,000 Gallon Capacity

The 3M ICE140-S system is engineered for higher-volume ice applications. With a nominal 0.2 µm rating, a flow rate of ~2.5 GPM and a capacity of up to 25,000 gallons (94,635 L), it’s ideal for environments where water quality and ice clarity are mission-critical.

Key Features

• 0.2 µm nominal rating for superior sediment and particulate reduction.
• Flow rate up to ~2.5 GPM (9.5 L/min).
• Capacity up to ~25,000 gallons (≈94,635 L).
• Integrated scale control to safeguard ice-machine evaporator plates and internal piping.

Specifications

• Model: ICE140-S
• Micron Rating: 0.2 µm (nominal)
• Flow Rate: ~2.5 GPM
• Rated Capacity: 25,000 gallons
• Inlet/Outlet: 3/8″ FNPT typical (verify machine plumbing)

Benefits

• Delivers premium ice quality, reducing fine particles and haze.
• Reduces maintenance & downtime by limiting scale-related component failure.
• Fits higher throughput ice machine setups needing enhanced water filtration.

Ideal Applications

• Large ice makers, high-volume cubers/flakers in hospitality or institutional settings.
• Operations where clarity, taste and equipment longevity are critical.

Maximize your ice machine performance with the 3M ICE140-S.
