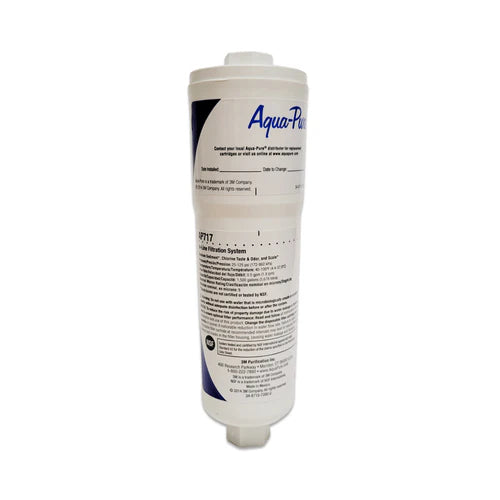

Aqua-Pure™ AP717 Inline Water Filtration System - (5560222)

Premium In‑Line Filtration for Ice Makers & Refrigerators

Upgrade your appliance water lines with the Aqua‑Pure AP717 — a compact in‑line filtration system engineered to improve taste and protect equipment from scale, while maintaining convenience in tight spaces.

Why the AP717 stands out

• Triple‑Action Filtration: Combines a sediment (“dirt/rust”) pre‑filter, a high‑adsorption activated‑carbon section (chlorine taste & odor) and a built‑in scale‑inhibition media to protect equipment like ice makers and drink dispensers.

• Certified Performance: Listed under NSF International Standard 42 for reduction of chlorine taste & odor.

• Compact, Simple Installation: ¼″ NPT inlet/outlet connections, flow rate up to ~0.5 gpm (≈1.9 L/min), rated for about 1,500 gallons (≈5,678 L) service life under typical conditions.

• Built for Appliance Protection: The scale inhibitor helps minimize scale‑build up in sensitive equipment (like ice makers) which enhances longevity and reduces maintenance.

• Use‑Friendly Materials & Design: Constructed with FDA CFR‑21 compliant materials, rated for up to 125 psi water pressure, maximum operating water temperature ~100 °F (≈37.8 °C).

Key Specifications

• Flow rate: Up to ~0.5 gallons per minute (≈1.9 L/min)

• Rated capacity: ~1,500 gallons (≈5,678 L) under standard conditions.

• Micron rating: Nominal ~5 µm (for sediment & particulate)

• Inlet/outlet size: ¼″ NPT standard threaded connections (some models include push‑in fittings)

• Maximum operating temperature: 100 °F (≈37.8 °C)

• Maximum operating pressure: Up to ~125 psi (≈862 kPa)

Ideal Use‑Case

• Perfect for refrigerators, automatic ice makers, drink dispensers or any appliance that requires clean water with minimal footprint.

• Ideal where sediment, chlorine taste/odor and scale protection are key concerns — especially in appliance feed lines rather than whole‑house filtration.

• Fits compact installations under cabinets or in appliance cavities where a large filtration system would not fit.

Installation & Maintenance Notes

• This unit is designed for cold water service only — do not install on the hot‑water line.

• If your house water pressure exceeds 80 psi (≈552 kPa), a pressure‑reducing valve is recommended before installation.

• Install on the feed line to the appliance, secure bracket if included, ensure correct flow direction marking, and use proper seal/tape on threaded connections.

• Replace the filter cartridge every 6 months or sooner if you observe reduced flow, change in taste/odor, or capacity exceeds ~1,500 gal.

• Because the system includes scale inhibitor media, it not only improves taste but helps protect appliances from scale buildup — but note: it is not a substitute for a full‑scale water softener if your water hardness is high.
